GaN 65W Charger resolution
author: shim
2023-06-05
GaN 65W Resolution
Shenzhen Ferpower Technology Co., Ltd.'s high-end innovative brand for individual consumers - Ferpower released GaN 65W gallium nitride charger, compact size, equipped with 1USB-A and 2USB-C ports, can support PD 65W fast charging output; Suitable for mobile phones, tablets, laptops, game consoles, and other devices with the lightning port and USB-C port. Let's test how the performance of this charger is, can it meet the device charging needs of the majority of users?
Look at the appearance first

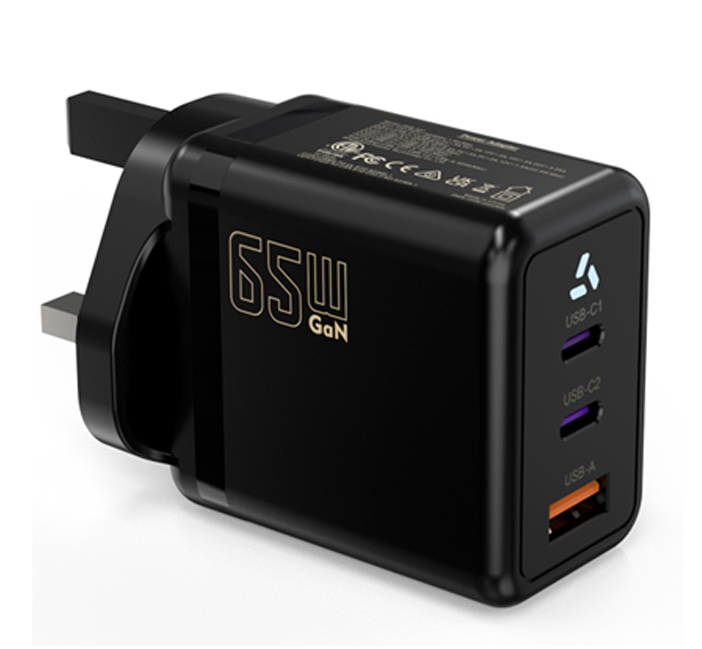

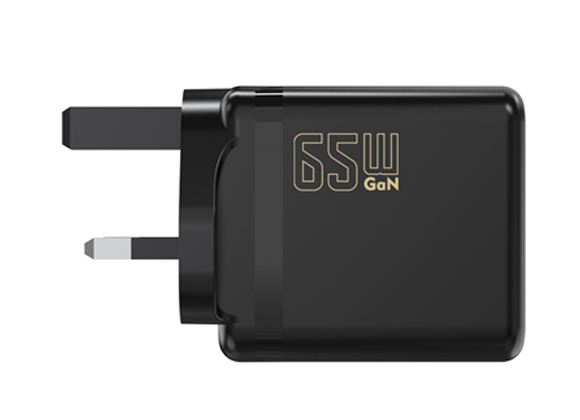

GAN 65W charger follows the design language of gallium nitride "small volume and high power" power supply, with off-white and black main body and pyramid LED lamp embellishment, delicate and exquisite; The words "65W GaN" are printed on the front

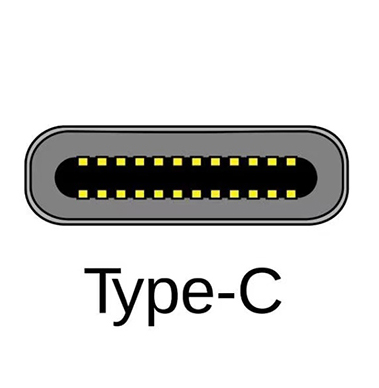

The output panel is equipped with USB-A + USB-C multi-port, with a rectangular wireframe logo, and the female mouth rubber core is also Roland purple representing PD fast charging and international orange.
GaN65W gallium nitride charger has American standard, British standard, European standard, Australian standard, Japanese standard, and other styles of pin design, the pin is made of pure copper material, has excellent electrical conductivity, safer.
Model: FEB-401-65W
Input：AC100-240V,50/60Hz,1.8A Max；
Output: USB-C1/C2: 5V/3A,9V/3A,12V/3A,15V/3A,20V/3.25A Max
Output: PPS: 3.3V~15V/3.0A(65W Max)
Output: USB-A: 4.5V/5A, 5V/3.0A, 5V/4.5A, 9V/2A, 12V/1.5A,(22.5W Max)
Manufacturing plants: Shenzhen Ferpower Technology CO., LTD.

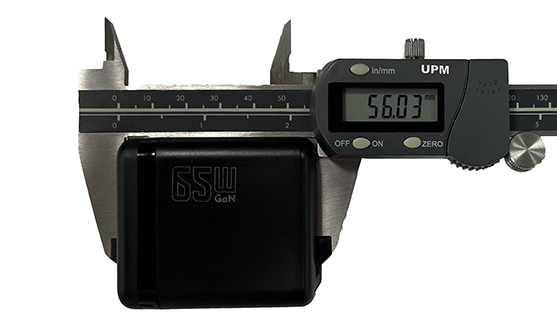

The 65W charger length is 56.0mm

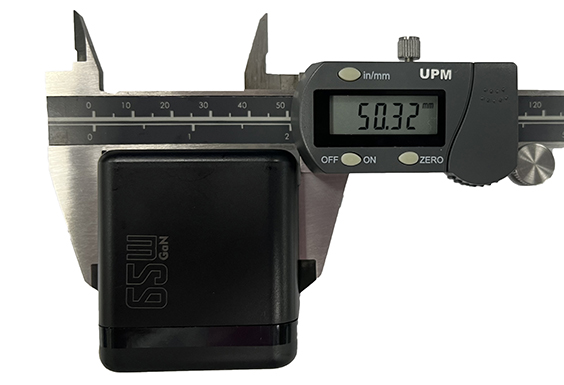

The width of the 65W charger is 50.0mm

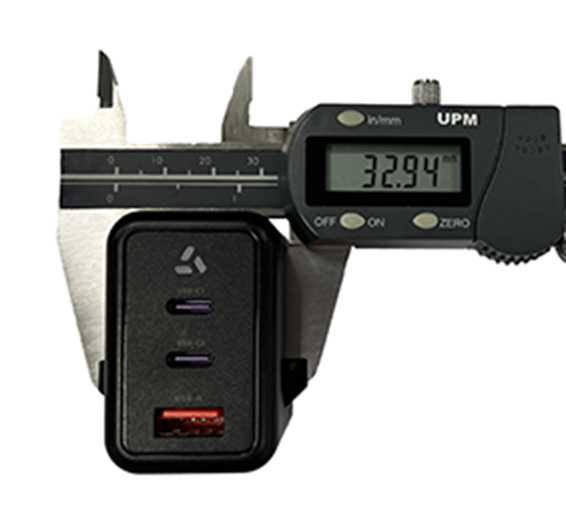

The thickness of the 65W charger is about 33.0mm, the volume is about 92.4cm³, and the power density is about 1.42W/cm based on the output power of 65W

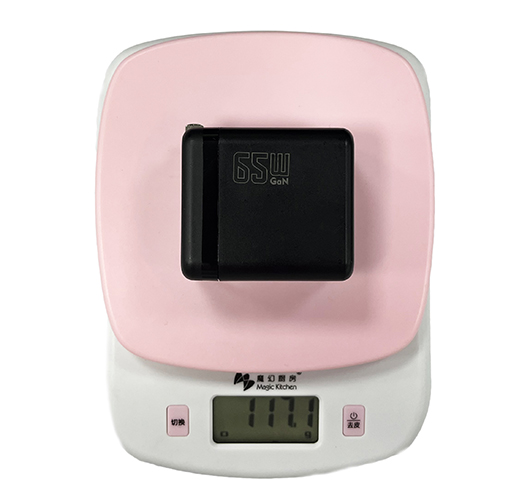

The 65W charger weighs about 117.1g.

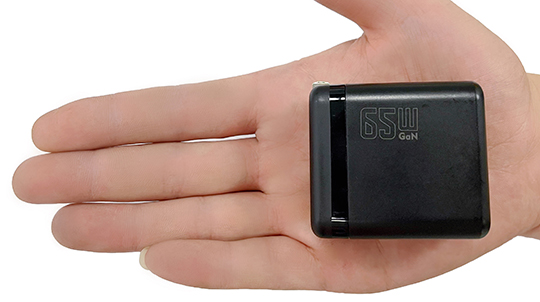

The 65W charger is placed in the palm of an adult male for contrast, and the body size is small and the look and feel is delicate
Protocol testing
The protocol test module mainly tests the complete fast charging protocol of the charger, in addition to marking the supported fast charging protocol, users can match the output device according to the specific protocol, so as to obtain a better fast charging experience.

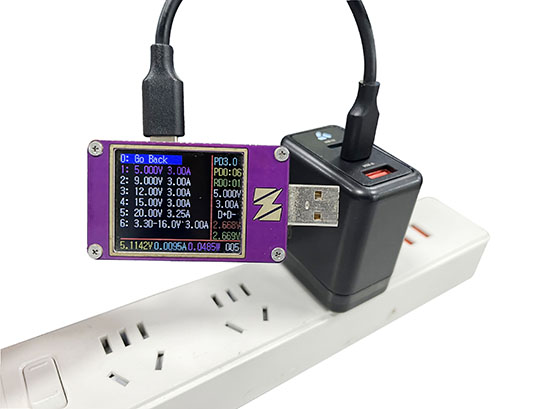

The USB-C port information of the 65W charger is read by the POWER-Z KM003C tester, and the charging protocols such as FCP, SCP, AFC, QC3.0, DCP, PD3.0, and PPS are supported for a wide range of coverage
The USB-C port information of the 65W charger is read by the POWER-Z KM003C tester, and the charging protocols such as FCP, SCP, AFC, QC3.0, DCP, PD3.0, and PPS are supported for a wide range of coverage
In terms of PDO messages, the measured USB-C port has five fixed voltage levels of 5V3A, 9V3A, 12V3A, 15V3A, 20V3.25A, and a set of PPS voltage levels of 3.3V~15V/3.0A (65W Max).
Charging compatibility test
GaN65W PowerAdapter supports a wealth of fast charging protocols, through the POWER-Z KM003C tester read information, measured support FCP, SCP, AFC, QC3.0, DCP, PD3.0, and PPS, and other charging protocols, covering a wide range, this test model covers mobile phones, game consoles, tablets, notebooks, and many other models, let's take a look at the fast charging of the USB-C interface through actual measurement
GaN65W PowerAdapter supports a wealth of fast charging protocols, through the POWER-Z KM003C tester read information, measured support FCP, SCP, AFC, QC3.0, DCP, PD3.0, and PPS, and other charging protocols, covering a wide range, this test model covers mobile phones, game consoles, tablets, notebooks, and many other models, let's take a look at the fast charging of the USB-C interface through actual measurement
The measured product data is summarized in a table, GaN65W charger most mobile phone handshake 9V voltage, game console and tablet handshake 15V voltage, notebook handshake 20V voltage.

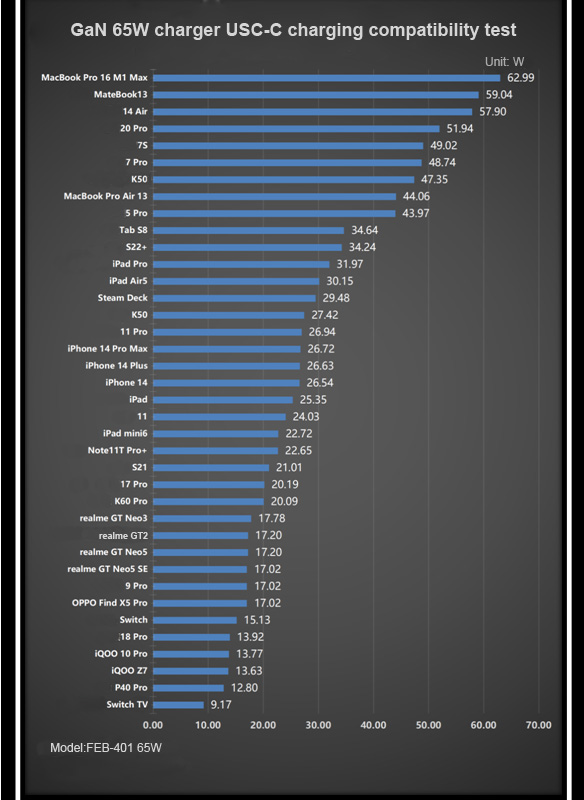

Draw a histogram, the highest charging power in the model tested in this test is MacBook Pro 16 M1Max 62.99W almost full of charger power limit, of which Meizu 20 Pro with excellent compatibility handshake 17V large voltage, charging power of 51.94W, the lowest power is IQOO Z7 is 13.63W, from the figure it can be seen that GaN 65W charger compatibility for IQOO series products is poor, other mobile phones are between 17-27W. Overall, the 65W charger can provide fast charging for most models, especially for notebook devices
Full charging test
GaN 65W Charger USB-C module single port maximum output power 65W, GaN 65W charger, and MacBook Pro 16 M1 Max placed in a 25°C incubator; and turned on, the test results are as below.
GaN 65W Charger USB-C module single port maximum output power 65W, GaN 65W charger, and MacBook Pro 16 M1 Max placed in a 25°C incubator; and turned on, the test results are as below.

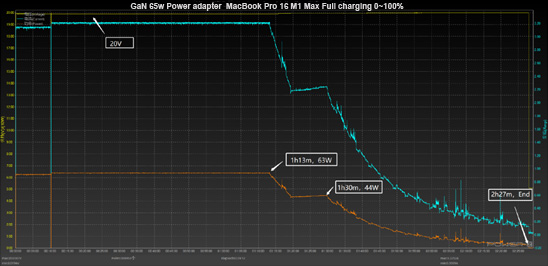

After turning on the power, shake the 20V voltage, and the power is stable at about 63W in the first 1 hour and 13 minutes; Then the power drops to about 44W and continues to charge until the 1st hour and 30 minutes; Then the power continues to drop, and the second hour enters a trickle charge until the computer is fully charged, and the whole charging takes about 2 hours and 27 minutes

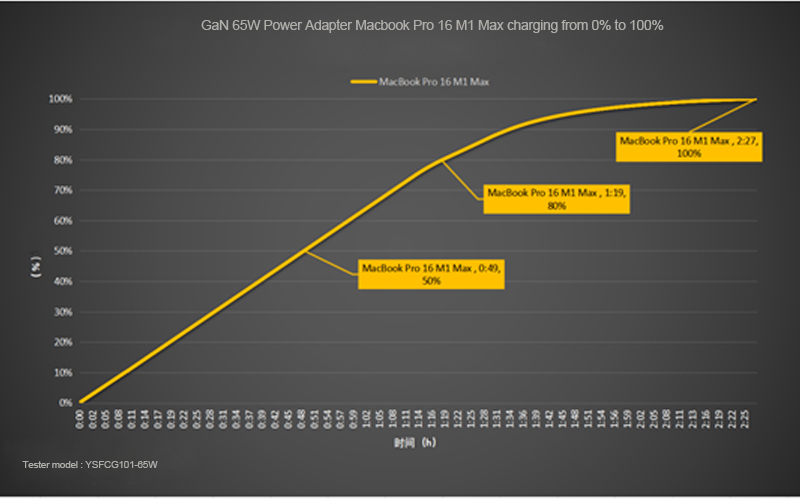

Drawing a line chart, it can be seen that the mobile speed 65W charger USB-C takes 49 minutes to charge the MacBook Pro 16 M1 Max to 50%, 1 hour and 19 minutes to 80%, and about 2 hours and 27 minutes to 100%.
No-load power consumption test
Whether the charger will waste power when not used in the socket, and how much power will be lost, this is the question in the minds of many readers, and the standby power consumption link is to answer this question. Plug the charger into the socket of the Becky power meter and read the data on the power meter, the test results are as below.

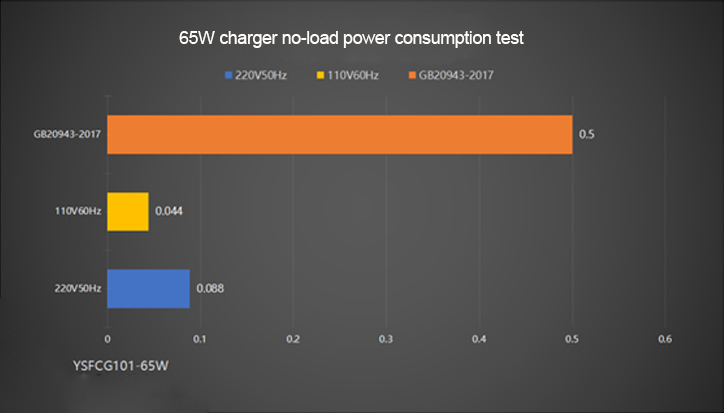

After the power meter test, the no-load power consumption of the charger at 220V 50Hz voltage is 0.088W.
Let's look at the no-load power consumption at 110V 60Hz voltage, the power consumption read by the power meter is 0.044W, which translates to a year's loss of about 0.385W•h
Let's look at the no-load power consumption at 110V 60Hz voltage, the power consumption read by the power meter is 0.044W, which translates to a year's loss of about 0.385W•h
Conversion efficiency test

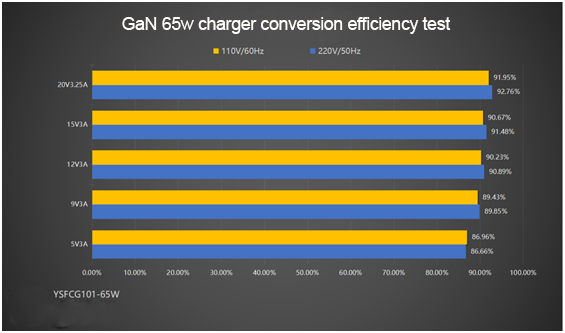

The charger is essentially a conversion device, and there will be losses in the process, which will be dissipated in the form of heat; The power drawn by the charger from the socket tends to be more than the power indicated by the charger; The conversion efficiency test of the 65W mobile charger with 220V 50Hz and 110V 60Hz AC input is carried out respectively, and the test results are shown below
Let's first look at the conversion efficiency under 110V 60Hz voltage, the overall conversion efficiency is between 86-92%; Among them, the highest conversion efficiency is the 20V3.25A gear, and the conversion efficiency reaches 91.95%; The lowest conversion efficiency is the 5V3A gear, with a conversion efficiency of 86.66%
Let's take a look at the conversion efficiency at 220V 50Hz, and the overall conversion efficiency is between 86-93%; Among them, the highest conversion efficiency is the 20V3.25A gear, and the conversion efficiency reaches 92.76%; The lowest conversion efficiency is the 5V3A gear, with a conversion efficiency of 86.66%.
Overall, the GaN 65W moving speed charger under the two types of voltage is the mainstream level among similar chargers.
Ripple test
Since the switching power supply is used in the charger, the secondary output of the transformer is not direct current, and the output needs to be rectified and capacitive filtered, that is, there will be a ripple in the charger output; The charging head network uses an oscilloscope to test the ripple value of the charger output, compare it with the industry standard, and detect the output quality of the charger. The lower the ripple, the higher the output quality of the charger.

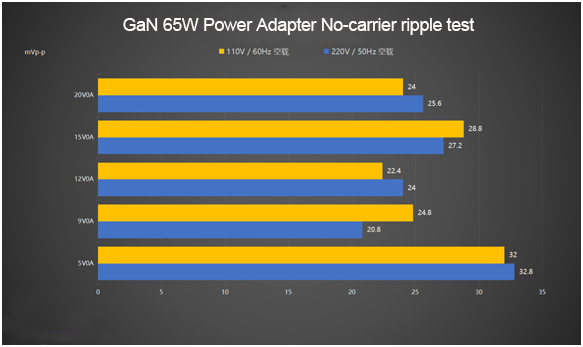

No-carrier ripple test
First of all, let's take a look at how the no-carrier ripple performance under 110V 60Hz voltage, the highest ripple peak-to-peak is the 5V0A gear, and the ripple peak-peak is 32mVp-p; The lowest gear of the ripple peak-to-peak is 12V0A, and the ripple peak-to-peak is 22.4mVp-p.
Looking at the no-carrier ripple at 220V 50Hz voltage, the highest ripple peak-to-peak is the 5V0A gear, and the ripple peak-peak is 32.8mVp-p; the lowest ripple peak-peak is the 9V0A gear, and the ripple peak-peak is 20.8mVp-p.

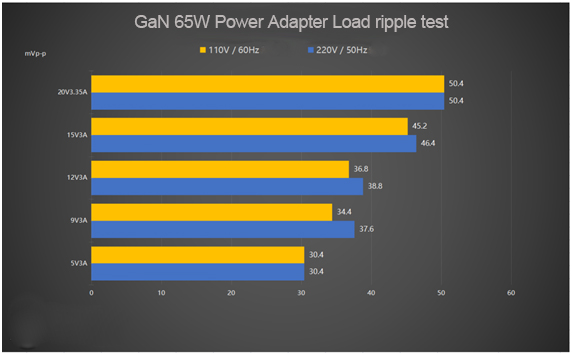

Load ripple test
First, look at how the carrier ripple behaves at 110V 60Hz voltage, the highest ripple peak-to-peak is 20V3.25A gear, the ripple peak-to-peak is 50.4mVp-p; the lowest ripple peak-to-peak gear is 5V3A, and the ripple peak-to-peak is 30.4mVp-p.
Let's look at the carrier ripple at 220V 50Hz voltage, the highest ripple peak is 20V3.25A gear, the ripple peak is 50.4mVp-p; the lowest ripple peak is 5V3A gear, and the ripple peak-peak is 30.4mVp-p.
Temperature test
The charger is a conversion device, and there will be losses during the charging process, which will be dissipated in the form of heat, so the charger will heat up. The C port of the GaN 65W output and the charger is placed in a 25°C incubator to collect the temperature of the charger surface after one hour of 20V3.25A load.
First, look at how the charger temperature behaves at a 220V 50Hz voltage output

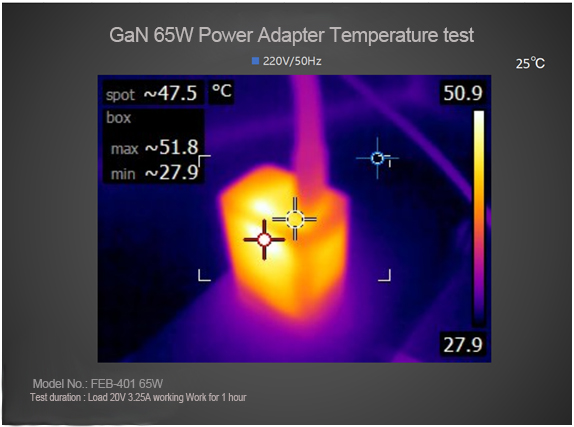

After one hour, use a thermal imager to photograph the charger surface with a maximum temperature of 51.8°C

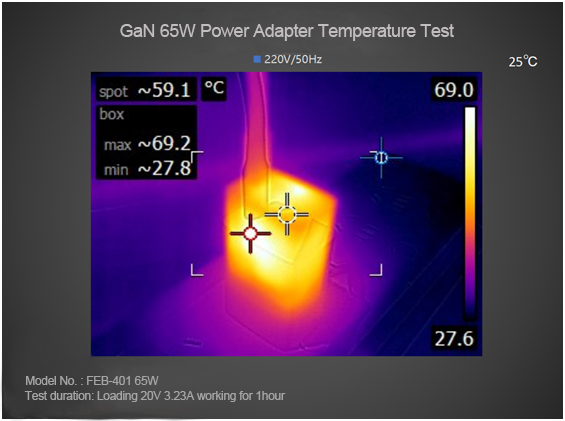

Use a thermal imager to photograph the maximum temperature on the other side of the charger surface at 69.2°C
Let's see how the charger temperature behaves at a 110V 60Hz voltage output

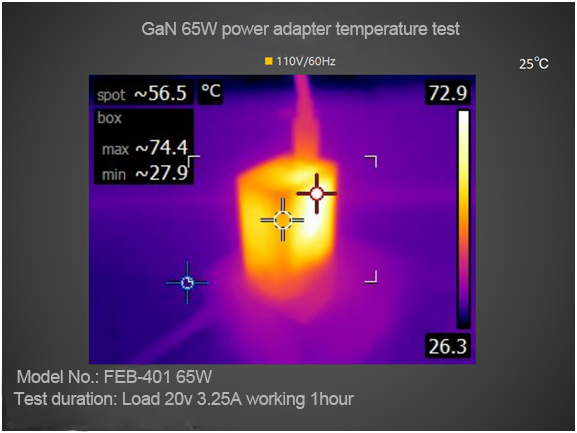

After one hour, the maximum temperature on the surface of the charger was 74.4°C using a thermal imager
